HDMI Super High Resolution™ Copper Cables

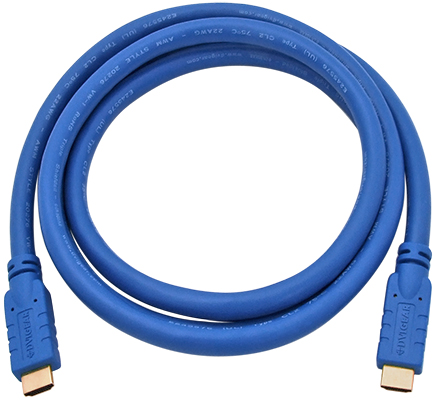

HDMI SHR Cable
Availability: Usually ships the next business day




Superior Performance — DVIGear's Super High Resolution™ (SHR™) HDMI cables are engineered for unsurpassed performance and reliability in mission critical applications.  These cables are designed to transport high speed digital HDMI signals over very long distances while maintaining pristine signal / bit integrity.

High-Speed Signals — Long distance transport of high resolution HDMI signals over copper cables must overcome several challenges, such as insertion loss, differential skew and jitter.  Insertion loss is caused by cable capacitance, which acts as a low-pass filter, blocking higher frequency signal components from passing.  Skew occurs when the differential HDMI signals get delayed and become out of phase as they pass over a long cable.  Both factors contribute to increased digital jitter, which degrades the performance of the cable.  This jitter becomes more severe with higher resolutions and longer cable distances.  Conventional cables that support lower resolutions at short distances are often unable to support the data rates required by higher resolutions at longer distances.  The resulting video can be disrupted by visual artifacts or may not be visible at all.

Advanced Design — Built to overcome these challenges, the SHR™ Series HDMI Cables are constructed using heavy gauge 22AWG copper wires.  This increases the cross-sectional cable area and decreases the capacitance of the cables, which allows signals with higher data rates to pass with minimal jitter.  When coupled with DVIGear's Active Cable Extenders (ACE™), cable lengths of up to 200 ft. (~ 60 meters) are possible while maintaining full compliance with HDMI signal parameters.  The combination of these products are active copper cables with minimal insertion loss and skew. These cables rival the performance of fiber cables at a fraction of the cost, while providing superior ruggedness and durability.

Key Features:

  • Cables 20m or longer include DVIGear's ACE™ (Active Cable Extender)
  • Supports HDTV resolutions up to 1080p with 12-bit color
  • Supports PC resolutions up to 1920x1200 and 2048x1080 at cable lengths up to 60m
  • Supports HDMI data rates up to 3.4 Gpbs. at lengths up to 7.5m
  • Supports HDMI data rates up to 2.25 Gbps. at lengths up to 40m

  • Supports PC data rates up to 1.65 Gbps. at lengths up to 60m
  • Heavy-duty 22AWG copper wires provide minimal insertion loss
  • Ultra-low Skew guarantees unsurpassed digital fidelity
  • Triple shielded for superior noise immunity
  • Dual UL Ratings: UL13 (CL2) and UL758 (AWM20276).  These cables are in-wall rated.

Cable Length Selector



Model Number Product Description Price Qty.
DVI-25005-SHR Cable HDMI SHR 22AWG, 0.5 meter  (1.6 ft.) $25.00
DVI-2501-SHR Cable HDMI SHR 22AWG, 1 meter  (3.3 ft.) EOL(2)
DVI-2502-SHR Cable HDMI SHR 22AWG, 2 meters  (6.6 ft.) EOL(2)
DVI-2503-SHR Cable HDMI SHR 22AWG, 3 meters  (9.8 ft.) EOL(2)
DVI-2505-SHR Cable HDMI SHR 22AWG, 5 meters  (16.4 ft.) EOL(2)
DVI-2507-SHR Cable HDMI SHR 22AWG, 7.5 meters  (24.6 ft.) EOL(2)
DVI-2510-SHR Cable HDMI SHR 22AWG, 10 meters  (32.8 ft.) $175.00
DVI-2512-SHR Cable HDMI SHR 22AWG, 12.5 meters  (41.0 ft.) EOL(2)
DVI-2515-SHR Cable HDMI SHR 22AWG, 15 meters  (49.2 ft.) EOL(2)
Cables below include DVIGear's ACE™ Active Cable Extender(1)
DVI-2520-SHR Cable HDMI SHR 22AWG, 20 meters  (65.6 ft.) $335.00
DVI-2525-SHR Cable HDMI SHR 22AWG, 25 meters  (82.0 ft.) $395.00
DVI-2530-SHR Cable HDMI SHR 22AWG, 30 meters  (98.4 ft.) EOL(2)
DVI-2535-SHR Cable HDMI SHR 22AWG, 35 meters  (114.8 ft.) $495.00
DVI-2540-SHR Cable HDMI SHR 22AWG, 40 meters  (131.2 ft.) $545.00
DVI-2545-SHR Cable HDMI SHR 22AWG, 45 meters  (147.6 ft.) EOL(2)
DVI-2550-SHR Cable HDMI SHR 22AWG, 50 meters  (164.0 ft.) $665.00
DVI-2560-SHR Cable HDMI SHR 22AWG, 60 meters  (196.9 ft.) EOL(2)

Note 1:   Includes DVI-7370c HDMI Active Cable Extender™ and 0.5 meter HDMI Cable.

Note 2:   This product is End of Life and is no longer available.

Model
Product Designation SHR™
Product Description 22AWG (Standard) HDMI Cables
Connectors
Input / Output Connectors 19-pin HDMI Male Connectors
Contacts 19 pins, 30μ Gold Plated, long life design
Shell Gold Flash Plated
Performance
Standards Compliance DVI 1.0, HDMI 1.3
Maximum Pixel Clock Frequency 165 MHz - up to 60 meters
225 MHz - up to 40 meters
340 MHz - up to 7.5 meters
Maximum Bit Rate (per Channel) 1.65 Gbps - up to 60 meters
2.25 Gbps - up to 40 meters
3.40 Gbps - up to 7.5 meters
Maximum Bit Rate (Aggregate) 4.95 Gbps - up to 60 meters
6.75 Gbps - up to 40 meters
10.2 Gbps - up to 7.5 meters
Supported HDTV Resolutions 1080p / 60 Hz with 8, 10 and 12-bit color
Supported Single-Link PC Resolutions Up to 2048x1080, 1920x1200
Supported Dual-Link PC Resolutions n/a
Cable Equalization DVIGear's Active Cable Extender (ACE™) is included with cables 20 meters (~ 65.6 ft.) and longer.
Typical Parametric Data
Voltage Rating 75 V
Differential Impedance 100 ohms ± 5%
Insertion Loss (SDD21) < 32 dB @ 825 MHz with 60 meter cable
Intra-pair Skew < 2.2 nsec (from 250 MHz - 2.5 GHz) with 60 meter cable
Inter-pair Skew < 150 psec (from 250 MHz - 2.5 GHz) with 60 meter cable
Far End Crosstalk (FEXT) < -20 dB
Propagation Delay 4.55 nsec/meter
Cable Lengths
Available Cable Lengths (meters) (1) 0.5,  1,  2,  3,  5,  7.5,  10,  12.5,  15,  20,  25,  30,  35,  40,  45,  50,  60
Available Cable Lengths (ft.) (1) 1.6,  3.3,  6.6,  9.8,  16.4,  24.6,  32.8,  41.0,  49.2,  65.6,  82.0,  98.4,  114.8,
131.2,  147.6,  164.0,  196.9
Maximum Cable Length 200 ft. (~ 60 meters)
Mechanical
Construction 19 Conductor Cable with 4x high speed twisted pairs
High Speed Conductors 22AWG, FM-PE+SKIN Construction
Shielding Triple Shielding
Jacket Material / Color PVC / Blue (PMS 301c)
Outside Diameter 11.50 ± 0.20 mm
Minimum Bend Radius 43.5 mm
Environmental
Operating Temperature -13° to 140° F (-25° to 60° C)
Storage Temperature -40° to 167° F (-40° to 75° C)
Humidity (storage / operating) 10% to 90% (non-condensing)
Regulatory Approvals
Compliance UL13 (CL2)
UL758 (AWM20276)
RoHS
UL File Numbers AVLV2.E245407
AVLV8.E245407
QPTZ.E245576
Warranty
Limited Warranty 3 Years
Accessories Included
DVIGear's Active Cable Extender (ACE™) is included with cables 20 meters (~ 65.6 ft.) and longer.

Note 1: DVI-7370c HDMI Active Cable Extender™ included with all cables 20 meters (~ 65.6 ft.) and longer.


link to large image




DVI-7370c
Extends HDMI Cables up to 200 ft. (~ 60 meters).
Included with all cables 20 meters (~ 65 ft.) and longer.
Price: $149.00
