Adapter Right Angle (270°) DVI Male to Female

Product Description:

The DVI-8315a and DVI-8316a are high quality Right Angle Adapters designed to enhance DVI cable routing in applications with tight space constraints.

Key Features:

DVI Male to Female Right Angle Adapter, internally wired to 18+5 pins
Supports all single-link DVI signal formats: DVI-D, DVI-I and DVI-A
Support for dual-link DVI formats is available on a special order basis
Supports up to 1.65 Gbps per TMDS lane
Insertion loss < 1.0 dB @ 825 MHz
Rugged metal shell provides superior durability and RFI/EMI Shielding

Specifications:

Mechanical
Connector Types	29-pin DVI Male / Female, internally wired to 18 + 5 pins
Dimensions (L x W x H)	1.24" x 1.57" x 1.48" (31.5 x 40 x 37.5 mm)
Weight	Net: 1.83 oz. / 52 g Shipping: 1.0 lbs. / 0.4k kg
Environmental
Operation	14° to 122° F (-10° to 50° C)
Storage	-22° to 158° F (-30° to 70° C)
Compliance	FCC Class B, RoHS
Model Numbers

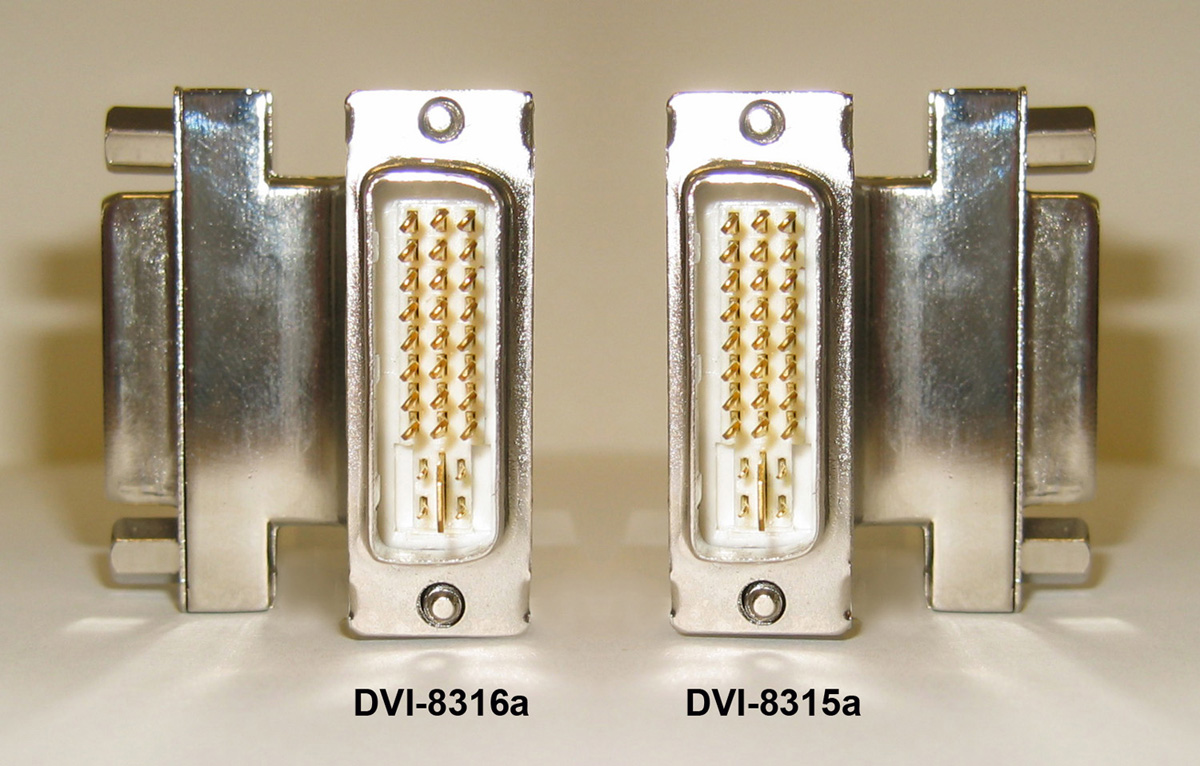

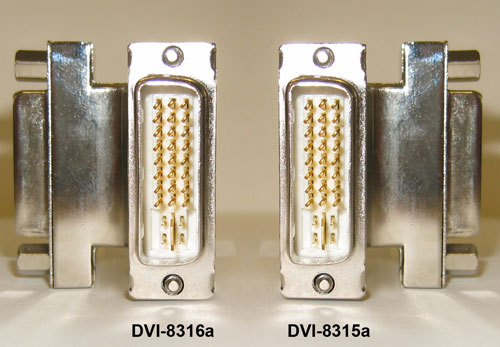

DVI-8315a	Adapter Right Angle (90°) DVI Male to Female
DVI-8316a	Adapter Right Angle (270°) DVI Male to Female

Connectivity Reference
Connector A	Connector B

DVI-I Male	DVI-I Female
