DVI Single-Link Active Cable Extender™
	Model No: DVI-7171c $149.00 Availability: Usually ships the next business day

Overview

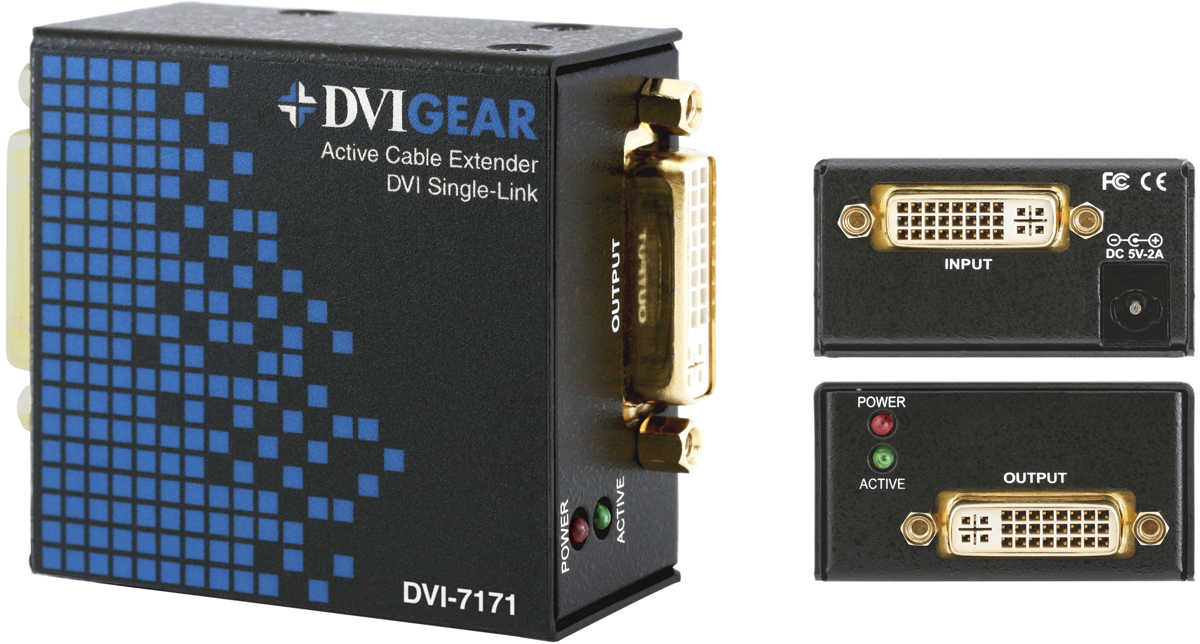

DVIGear's Single-Link ACE™ Active Cable Extender is a dynamic cable equalizer that performs high-speed cable compensation on long DVI and HDMI cables. This unit provides up to 40 dB of insertion loss correction at 825 MHz, which correlates to the highest possible DVI signal resolutions. The amount of equalization can be automatically adjusted independent of cable length connected, or manually set using a precision 25-turn adjustment. Innovative features such as automatic power detection and high-speed ESD protection further enhance the usefulness of this unit in system applications.

When used in conjunction with DVIGear's Super High Resolution™ DVI and HDMI cables, cable lengths of up to 200 ft. (~ 60 meters) are possible. The combination of these products form active cable assemblies that are fully compliant with DVI and HDMI standards, and which provide superior performance, ruggedness and durability.

Key Features:

Supports all HDTV resolutions up to 1080p (8-bit and 12-bit color)
Supports PC resolutions up to 1920x1200
and 2048x1080
Supports digital bit rates up to 2.25 Gbps.
Supports HDCP (pass-through)
Maximum distance from source to ACE™:
200 ft. (~ 60 meters)
Maximum distance from ACE™ to display:
15 ft. (~ 5 meters)

Automatic or precise Manual Adjustment
of cable equalization
Locking connector for AC Power Adapter
for added security
Robust ESD protection on input and output
Rugged, ultra-compact metal enclosure
LEDs indicate presence of sufficient power and active DVI signal

Performance
Compliance	DVI v1.0, HDMI, HDCP
Maximum Pixel Clock Frequency	Up to 225 MHz
Maximum Bit Rate	Up to 2.25 Gbps
Supported HDTV Resolutions	480p, 720p, 1080i, 1080p, (8-bit and 12-bit color)
Supported PC Resolutions	Up to 1920x1200 and 2048x1080
Input Signal Equalization	Adaptive equalization, provides up to +40 dB correction @ 825 MHz
Cable Equalization Modes	Auto EQ Mode - for cable lengths up to 30 meters Manual EQ Mode - for cable lengths longer than 30 meters
Input Connections
DVI Input	1x DVI 29-pin female connector
Power Input	1x 5.5 / 2.5 mm locking connector
Output Connections
DVI Output	1x DVI 29-pin female connector
Cable Length
Maximum Input Cable Length	200 ft. (~ 60 meters) (1)(2)
Maximum Output Cable Length	15 ft. (~ 5 meters) (1)
DDC Support
EDID / HDCP Support	Yes, pass-through
Mechanical
Construction	Rugged steel enclosure with durable black finish
Dimensions (H-W-D)	1.1" x 2.1" x 2.6" (29.2 mm x 53.7 mm x 67.1 mm)
Weight	4.7 oz (132 g)
Environmental
Operating Temperature	+32° to +122° F (0° to +50° C)
Storage Temperature	-4° to +158° F (-20° to +70° C)
Humidity (storage / operating)	10% to 90% (non-condensing)
Power Requirements
External AC Power Adapter	Input: 100~240VAC / 50-60Hz Output: 5VDC, 3.0A
Power Consumption (typical)	1.5 watts
Regulatory Approvals
ACE™ Unit	FCC, CE, and RoHS
External AC Power Adapter	FCC, CE, UL, C-UL, CEC, GS, PSE, RoHS
Warranty
Limited Warranty	3 Years Parts and Labor
Model Number
DVI-7171c	DVI Single-Link Active Cable Extender
Accessories Included
1x External AC Power Adapter, 1x User Guide
Optional Accessories
International AC Power Adapter (USA, Euro, UK, Australia)

Note 1: Maximum cable lengths using DVIGear's 22AWG Super High Resolution (SHR™) cables.

Note 2: The maximum cable length with 1080p / 60Hz 8-bit color (1.5 Gbps.) input signal is 200 ft. (~ 60 meters). The maximum cable length with 1080p / 60Hz 12-bit color (2.25 Gbps.) input signal is 131 ft. (~ 40 meters).
